Replace Revision/Variant Window

The command Replace Revision/Variant in the integration menu updates the revision of the selected model. This function is also used when working with variants, refer to PartFactory

To change the revision of a component in an assembly:

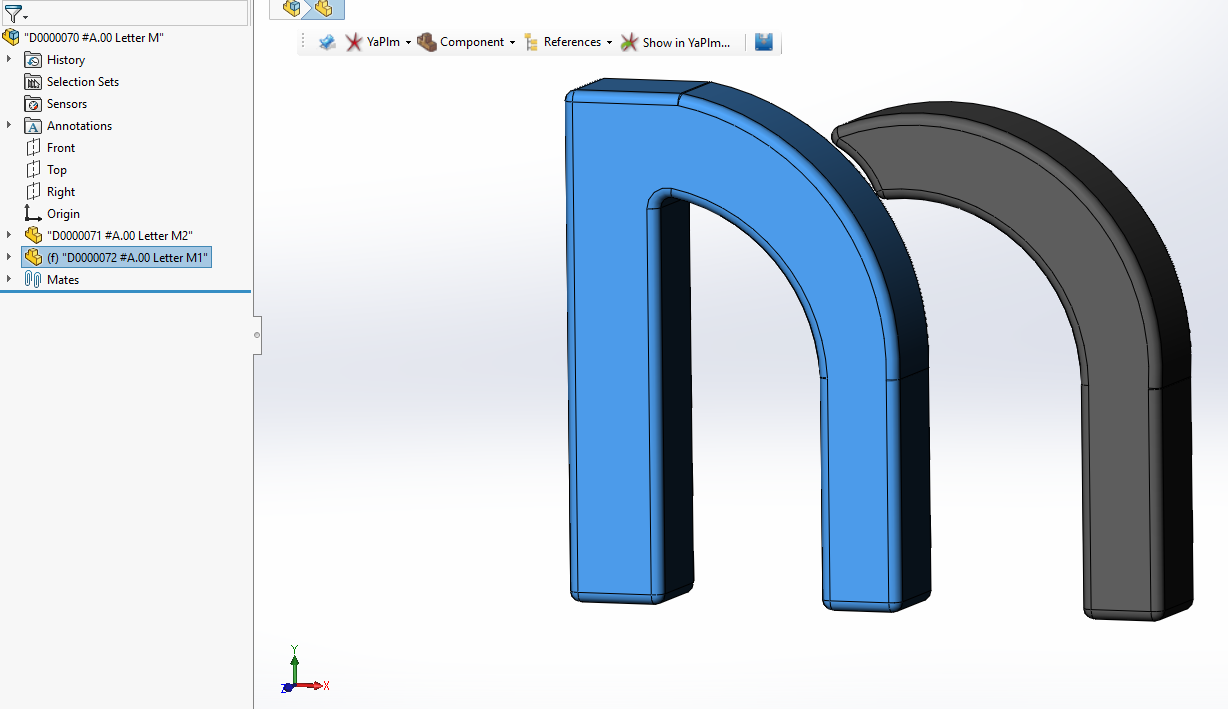

- Select the component to be updated in the assembly.

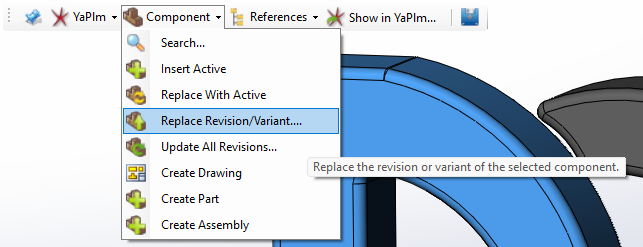

- Press the Replace Revision/Variant button

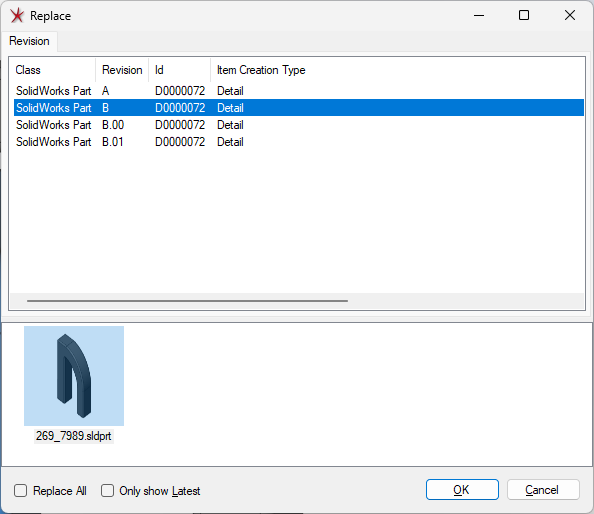

- The following dialogue is shown, listing all available revisions (or only latest if the 'Only show Latest' checkbox is checked) of the selected document:

- Mark the revision to be inserted

- Press the OK button

The selected component in the assembly is now updated with a new revision.

	If the 'Replace all' is checked, all opened instances of the selected component will be replaced with the new revision of the object.
