Save Window

The Save command saves the active file into YaPlm by creating an object for it in YaPlm and creates a copy to the working directory if it isn't already there. The Save command can also step through referenced files and do the same for these, e.g. if a CAD assembly is being saved.


The Save command performs the following tasks:

- Saves the file in the application
- Synchronizes attributes between YaPlm and the application
- Saves the structure into YaPlm

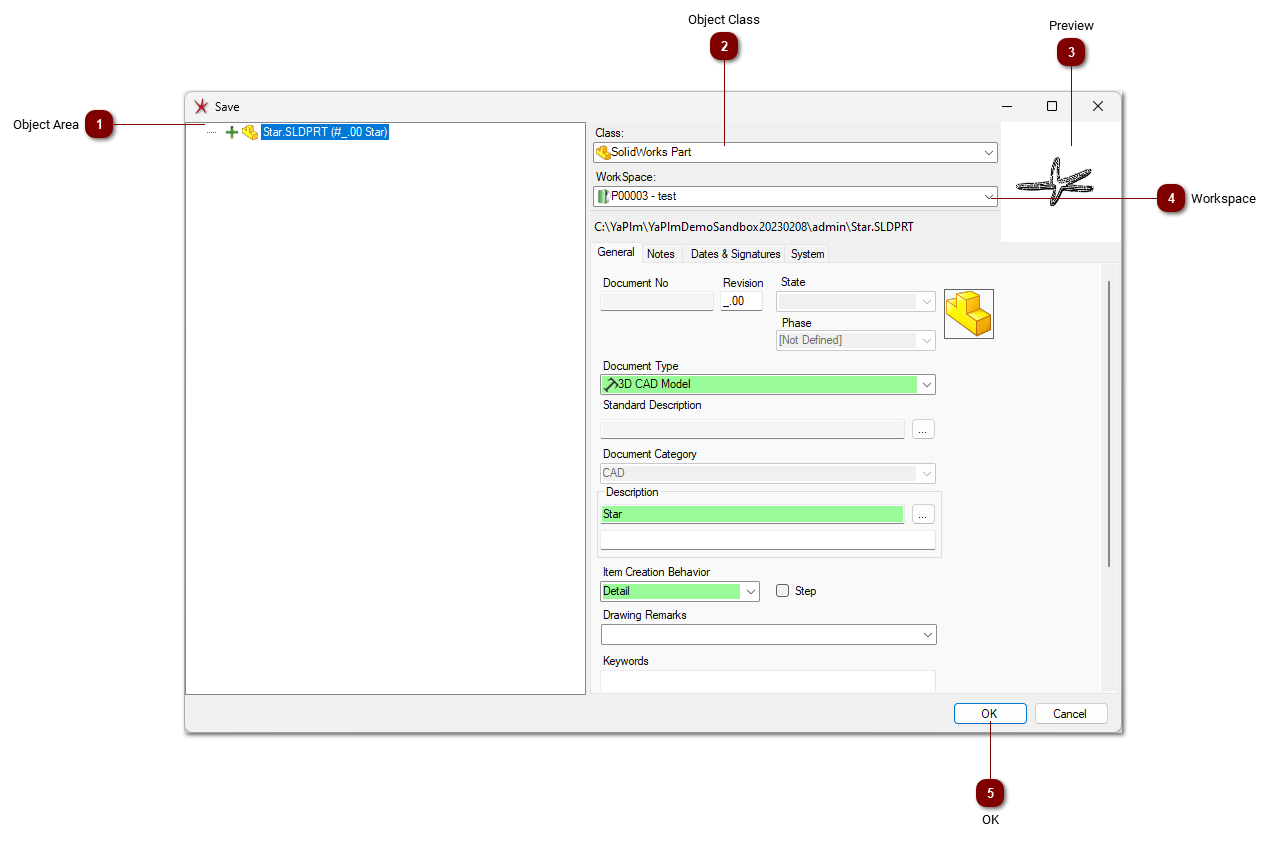

6.1.1.1 Save Window
1

Object Area

1. Object Area
The Object to be saved and its status are shown in this window
2

Object Class

2. Object Class
The class which the object shall be saved into
3

Preview

3. Preview
Thumbnail preview of the part
4

Workspace

4. Workspace
The workspace where the object should be linked to in the Main Structure
5

OK

5. OK
Confirm button
