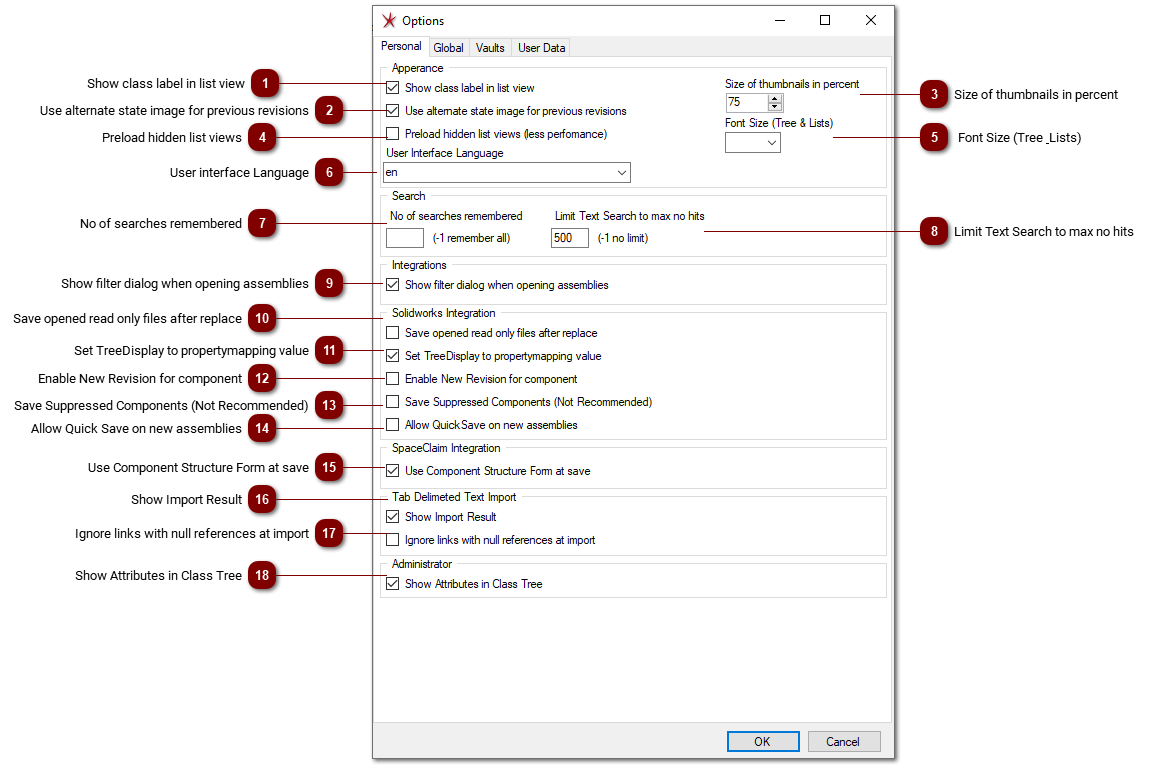

Show class label in list view If checked the class label will be displayed in list views
Use alternate state image for previous revisions Shows the 'blue dot' overlay image for previous revisions
Size of thumbnails in percent Specifies the size of the thumbnails
Preload hidden list views If checked all objects in the lists are loaded when an object is marked. If not checked a '?' is displayed on the tabs and the lists are filled when clicking
Font Size (Tree & Lists) Specifies the font size on the lists and tree from a drop down window.
User interface Language Specifies the language used when working within YaPlm
No of searches remembered Specifies how many saved searches that shall be remembered under
My Searches
Limit Text Search to max no hits
Show filter dialog when opening assemblies
Save opened read only files after replace
Set TreeDisplay to propertymapping value Sets the tree display in SolidWorks Feature Tree to 'Show Components Description'. The Component descripton is controlled by a setting in YaPlm
Enable New Revision for component Enables the New Revision/Check Out functionality from the integration menu
Save Suppressed Components (Not Recommended)
Allow Quick Save on new assemblies
Use Component Structure Form at save
Show Import Result
Ignore links with null references at import
Show Attributes in Class Tree
